Required: integration unit codes for US states

[Bernd Welter]

Hi there,

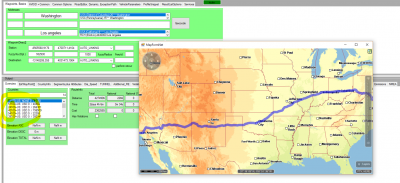

example screenshot of a route in US traversing various states. The issue is that the returned IU codes aren't sufficient without a matching table IUcode<=>state

We deal with the routing in the USA and one info we retrieve from the xRoute server is the toll.
According to the API documentation the toll info's are assigned to INTEGRATION UNIT CODES but what we really need is the code of the STATE.

Is there a matching list of IUcodes 2 state code?

Bet regards,
Bernd

[jmamy]

Hi there,
This use case is pretty common for US customers that want to evaluate their fuel tax (IFTA), it requires mileage per states.

I built a geojson file from various source on the web, and a little bit of edition to match the PTV sub unit code to the actual state name.

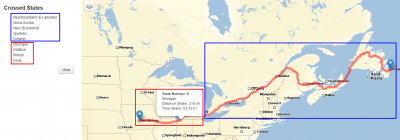

I'm now able to retrieve the mileage per state (US and CAN)and the states boundaries, Mexico return the same IUCode (752) for the whole country.

[Bernd Welter]

Here we go... I already asked for those values to be updated in the documentation.

world.txt

TXT file with the values

(11.82 KiB) Downloaded 13451 times

http://xserver.ptvgroup.com/forum/viewt ... 6100#p1119

ID	ISO3	ISO2	COUNTRY CODEPLATE	INTERNATIONAL DIALLING	SUBUNIT CODE	AGFCODE	DRIVING SIDE	CURRENCY ID
1	CZE	CZ	CZ	420		CZE	0	30
2	SVK	SK	SK	421		SLO	0	1
7	SMR	SM	RSM	378		ITA	0	1
10	PRI	PR	PR	178		ENG	0	12
11	EST	EE	EST	372		EST	0	1
12	GEO	GE	GE	995		GEO	0	106
13	LVA	LV	LV	371		LAV	0	1
14	LTU	LT	LT	370		LIT	0	1
15	MDA	MD	MD	373		RUM	0	27
16	RUS	RU	RUS	7		RUS	0	105
17	UKR	UA	UA	380		UKR	0	104
18	BLR	BY	BY	375		BEL	0	28
20	EGY	EG	ET	20		ENG	0	63
27	ZAF	ZA	ZA	27		ENG	1	29
30	GRC	GR	GR	30		GRE	0	1
31	NLD	NL	NL	31		DUT	0	1
32	BEL	BE	B	32		FRE	0	1
33	FRA	FR	F	33		FRE	0	1
34	ESP	ES	E	34		SPA	0	1
36	HUN	HU	H	36		HUN	0	17
39	ITA	IT	I	39		ITA	0	1
40	ROU	RO	RO	40		RUM	0	15
41	CHE	CH	CH	41		GER	0	6
43	AUT	AT	A	43		GER	0	1
44	GBR	GB	GB	44		ENG	1	2
45	DNK	DK	DK	45		DAN	0	3
46	SWE	SE	S	46		SWE	0	5
47	NOR	NO	N	47		NOR	0	4
48	POL	PL	PL	48		POL	0	7
49	DEU	DE	D	49		GER	0	1
50	GIB	GI	GBZ	350		ENG	0	149
51	PRT	PT	P	351		POR	0	1
52	LUX	LU	L	352		LTZ	0	1
53	IRL	IE	IRL	353		ENG	1	1
54	ISL	IS	IS	354		ICE	0	10
55	ALB	AL	AL	355		ALB	0	20
56	MLT	MT	M	356		MLT	1	1
57	CYP	CY	CY	357		GRE	1	1
58	FIN	FI	FIN	358		FIN	0	1
59	BGR	BG	BG	359		BUL	0	16
60	MYS	MY	MAL	60		MAY	1	128
61	LBN	LB	RL	961		FRE	0	64
62	AND	AD	AND	376		CAT	0	1
63	SYR	SY	SYR	963		ENG	0	66
64	NZL	NZ	NZ	64		ENG	1	143
65	SGP	SG	SGP	65		ENG	1	150
66	SAU	SA	KSA	966		ENG	0	71
71	LBY	LY	LAR	218		ARE	0	62
72	ISR	IL	IL	972		HEB	0	65
73	PSE	PS	PN	972		ARA	0	65
74	UZB	UZ	UZ	998		UZB	0	110
75	LIE	LI	FL	423		GER	0	6
76	MAR	MA	MA	212		FRE	0	59
77	DZA	DZ	DZ	213		FRE	0	60
78	TUN	TN	TN	216		FRE	0	61
79	ESH	EH	DAS	212		ARE	0	59
80	MRT	MR	RIM	222		FRE	0	75
81	SRB	RS	SRB	381		SRB	0	23
82	KOR	KR	ROK	82		KOR	0	132
83	JOR	JO	JOR	962		ENG	0	68
84	VNM	VN	VN	84		VIE	0	126
85	HRV	HR	HR	385		SCR	0	18
86	SVN	SI	SLO	386		SLV	0	1
87	BIH	BA	BIH	387		BOS	0	21
89	MKD	MK	MK	389		MAC	0	19
90	TUR	TR	TR	90		TUR	0	11
91	IND	IN	IND	91		ENG	1	118
92	PAK	PK	PK	92		URD	1	116
93	MCO	MC	MC	377		FRE	0	1
94	AZE	AZ	AZ	994		AZE	0	107
95	ARM	AM	AM	374		ARM	0	108
96	VAT	VA	V	390		ITA	0	1
98	FRO	FO	FR	298		FAO	0	3
100	USA	US	USA	1		ENG	0	12
200	CAN	CA	CDN	1		ENG	0	13
220	GMB	GM	WAG	220		ENG	0	77
221	SEN	SN	SN	221		FRE	0	76
223	MLI	ML	RMM	223		FRE	0	76
224	GIN	GN	RG	224		FRE	0	78
226	BFA	BF	BF	226		FRE	0	76
227	NER	NE	RN	227		FRE	0	76
228	TGO	TG	RT	228		FRE	0	76
229	BEN	BJ	DY	229		FRE	0	76
230	MUS	MU	MS	230		ENG	1	151
231	LBR	LR	LB	231		ENG	0	80
232	SLE	SL	WAL	232		ENG	0	79
233	GHA	GH	GH	233		ENG	0	81
234	NGA	NG	WAN	234		ENG	0	82
235	TCD	TD	TCH	235		FRE	0	83
236	CAF	CF	RCA	236		FRE	0	83
237	CMR	CM	CAM	237		FRE	0	83
238	CPV	CV	CV	238		POR	0	148
239	STP	ST	STP	239		POR	0	153
240	GNQ	GQ	EQ	240		SPA	0	83
241	GAB	GA	G	241		FRE	0	83
242	COG	CG	RCB	242		FRE	0	83
243	COD	CD	CGO	243		FRE	0	89
244	AGO	AO	ANG	244		POR	0	94
245	GNB	GW	GW	245		POR	0	76
248	SYC	SC	SY	248		CPF	1	135
249	SDN	SD	SUD	249		ENG	0	84
250	RWA	RW	RWA	250		FRE	0	92
251	ETH	ET	ETH	251		ENG	0	87
252	SOM	SO	SO	252		SOM	0	88
253	DJI	DJ	DJ	253		ARA	0	86
254	KEN	KE	EAK	254		ENG	1	91
255	TZA	TZ	EAT	255		ENG	1	93
256	UGA	UG	EAU	256		ENG	1	90
257	BDI	BI	BU	257		FRE	0	162
258	MOZ	MZ	MOC	258		POR	1	98
260	ZMB	ZM	Z	260		ENG	1	96
261	MDG	MG	RM	261		MLG	0	101
262	REU	RE	RE	262		FRE	0	1
263	ZWE	ZW	ZW	263		ENG	1	99
264	NAM	NA	NAM	264		ENG	1	97
265	MWI	MW	MW	265		ENG	1	95
266	LSO	LS	LS	266		ENG	1	29
267	BWA	BW	RB	267		ENG	1	100
268	SWZ	SZ	SD	268		ENG	1	29
269	COM	KM	KM	269		ARA	0	134
270	MYT	YT	MAY	269		FRE	0	1
291	ERI	ER	ER	291		ENG	0	85
292	SSD	SS	SSD	211		ENG	0	163
297	ABW	AW	NL	297		DUT	0	154
299	GRL	GL	GD	299		DAN	0	3
300	ATA	AQ	ZZA			ENG
303	BVT	BV	BV			NOR		4
304	IOT	IO	GB			ENG	1	2
306	CXR	CX	AUS	672		ENG	1	140
307			ZZE			UND
309	CIV	CI	CI	225		FRE	0	76
310			ZZF			UND
312	ATF	TF	ZZH			FRE	0	1
315		GB	GBG	44		ENG	1	2
316	HMD	HM	ZZJ	61		ENG	1	140
317	HKG	HK	HK	852		ENG	1	156
318		UM	USA			UND		12
319			ZZK			UND		67
320	SJM	SJ	N	47		NOR	0	4
321		GB	GBJ	44		ENG	1	2
322			USA			UND	0	12
325		GB	GBM	44		ENG	1	2
328	NIU	NU	NZ	64		ENG	1	143
329	NFK	NF	AUS	672		ENG	1	140
331			ZZM	86		UND	0	123
333	SGS	GS	GB	500		ENG	1	51
334			ZZN			UND
335	SHN	SH	SH	290		ENG	1	157
336	SJM	SJ	N	47		NOR	0	4
337	TKL	TK	NZ	64		ENG	1	143
338			ZZO	33		UND
339	UMI	UM	USA	1		ENG	0	12
340	FSM	FM	FSM	691		ENG	0	12
341	PRK	KP	DVR	82		KOR	0	131
342			ZZP			UND	0
381		XK	RKS	381		SCC	0	1
382	MNE	ME	MNE	382		SML	0	1
500	FLK	FK	FK	500		ENG	1	51
501	BLZ	BZ	BH	501		ENG	0	35
502	GTM	GT	GCA	502		SPA	0	34
503	SLV	SV	ES	503		SPA	0	12
504	HND	HN	HN	504		SPA	0	36
505	NIC	NI	NIC	505		SPA	0	37
506	CRI	CR	CR	506		SPA	0	38
507	PAN	PA	PA	507		SPA	0	39
509	HTI	HT	RH	509		FRE	0	54
530	TTO	TT	TT	186		ENG	1	56
531	GRD	GD	WG	147		ENG	1	57
532	BRB	BB	BDS	124		ENG	1	58
533	VCT	VC	WV	178		ENG	1	57
534	LCA	LC	WL	175		ENG	1	57
535	DMA	DM	WD	176		ENG	1	57
536	DOM	DO	DOM	180		SPA	0	55
537	KNA	KN	SCN	186		ENG	1	57
538	JAM	JM	JA	187		ENG	1	53
539	MSR	MS	MOT	166		ENG	1	57
540	ATG	AG	AB	126		ENG	1	57
543	AIA	AI	ADS	126		ENG	1	57
544	VGB	VG	BVI	128		ENG	1	12
545	VIR	VI	VIN	134		ENG	1	12
546	CYM	KY	CAY	134		ENG	1	33
547	TCA	TC	TQ	164		ENG	1	12
548			NAV	1		UND		12
550	BMU	BM	BM	144		ENG	1	12
551	SPM	PM	PM	508		FRE	0	1
590	GLP	GP	GL	590		FRE	0	1
591	BOL	BO	BOL	591		SPA	0	46
592	GUY	GY	GUY	592		ENG	1	42
593	ECU	EC	EC	593		SPA	0	12
594	GUF	GF	FG	594		FRE	0	1
595	PRY	PY	PY	595		SPA	0	47
596	MTQ	MQ	MR	596		FRE	0	1
597	SUR	SR	SME	597		DUT	1	43
598	URY	UY	ROU	598		SPA	0	50
599	ANT	AN	NA	599		DUT	0	158
670	MNP	MP	NMI	167		ENG	0	12
671	GUM	GU	GM	167		ENG	0	12
673	BRN	BN	BRU	673		MAY	1	129
674	NRU	NR	NAU	674		NAU	1	140
675	PNG	PG	PNG	675		ENG	1	139
676	TON	TO	TO	676		ENG	1	147
677	SLB	SB	SLB	677		ENG	1	141
678	VUT	VU	NH			BIS	0	144
679	FJI	FJ	FJI	679		ENG	1	145
680	PLW	PW	PW	680		ENG	0	12
681	WLF	WF	WF	678		FRE	0	146
682	COK	CK	RG	682		ENG	1	143
684	ASM	AS	WSA	684		ENG	0	12
685	WSM	WS	WS	685		ENG	1	142
686	KIR	KI	KR	686		GIL	1	140
687	NCL	NC	NC	687		FRE	0	146
688	TUV	TV	TV			TVL	1	140
689	PYF	PF	FP	689		FRE	0	146
691			CAR			UND	0	139
692	MHL	MH	MIS	692		MAH	0	12
696		UM	JI	1		UND		12
698			WI			ENG	0	12
751	PER	PE	PE	51		SPA	0	44
752	MEX	MX	MEX	52		SPA	0	32
753	CUB	CU	C	53		SPA	0	52
754	ARG	AR	RA	54		SPA	0	49
755	BRA	BR	BR	55		POR	0	45
756	CHL	CL	RCH	56		SPA	0	48
757	COL	CO	CO	57		SPA	0	40
758	VEN	VE	YV	58		SPA	0	41
759			CYA	357		GRE	1	1
760			CYB	357		TUR	1	11
761	AUS	AU	AUS	61		ENG	1	140
762	IDN	ID	RI	62		IND	1	138
763	PHL	PH	RP	63		TGL	0	130
766	THA	TH	THA	66		THA	1	124
775	TKM	TM	TM	993		TUK	0	112
776	KAZ	KZ	KZ	7		KAZ	0	109
777	KGZ	KG	KS	996		KIR	0	111
778	TJK	TJ	TJ	992		TGK	0	113
781	JPN	JP	J	81		JPN	1	14
786	CHN	CN	VRC	86		CHI	0	123
793	AFG	AF	AFG	93		PER	0	114
794	LKA	LK	CL	94		SIN	1	137
795	MMR	MM	MYA	95		BUR	0	122
798	IRN	IR	IR	98		PER	0	115
809	BHS	BS	BS	124		ENG	1	31
853	MAC	MO	MAC	853		POR	1	159
855	KHM	KH	K	855		KHM	0	127
856	LAO	LA	LAO	856		LAO	0	125
880	BGD	BD	BD	880		BEN	1	119
886	TWN	TW	RC	886		CHI	0	160
960	MDV	MV	MV	960		DIV	1	136
964	IRQ	IQ	IRQ	964		ENG	0	67
965	KWT	KW	KWT	965		ENG	0	69
967	YEM	YE	YEM	967		ENG	0	74
968	OMN	OM	OM	968		ENG	0	73
971	ARE	AE	UAE	971		ENG	0	72
973	BHR	BH	BRN	973		ENG	0	161
974	QAT	QA	Q	974		ENG	0	70
975	BTN	BT	BHT	975		DZO	1	121
976	MNG	MN	MGL	976		MON	0	117
977	NPL	NP	NEP	977		NEP	1	120
978	TLS	TL	TL			TET	1	12
981	CCK	CC	CC			ENG	1	140
982	PCN	PN	PN			ENG	1	143
983	BLM	BL	BL			FRE	0	1
984	MAF	MF	MF			FRE	0	1
985	SXM	SX	SX			DUT	0	158
986	BES	BQ	NA			DUT	0	12
987	CUW	CW	NA			DUT	0	158
999			ZZZ			UND	0
1016			RUS		FE	RUS	0	105
1027			ZA	27	NC	AFR	1	29
1033	FRA	FR	F	33	HA	FRE	0	1
1091			IND	91	AP	ENG	1	118
1100			USA	1	AL	ENG	0	12
1200			CDN	1	NB	ENG	0	13
1761			AUS	61	SW	ENG	1	140
1786			VRC	86		CHI	0	123
1999			ZZZ			UND	0
2016			RUS		NC	RUS	0	105
2027			ZA	27	WC	AFR	1	29
2091			IND	91	AN	ENG	1	118
2100			USA	1	AK	ENG	0	12
2200			CDN	1	PE	ENG	0	13
2761			AUS	61	VI	ENG	1	140
2786			VRC	86		CHI	0	123
2999			ZZZ			UND	0
3016			RUS		NW	RUS	0	105
3027			ZA	27	LI	AFR	1	29
3091			IND	91	AR	ENG	1	118
3200			CDN	1	NL	ENG	0	13
3761			AUS	61	QL	ENG	1	140
3786			VRC	86		CHI	0	123
3999			ZZZ			UND	0
4016			RUS		SB	RUS	0	105
4027			ZA	27	MP	AFR	1	29
4091			IND	91	AS	ENG	1	118
4100			USA	1	AZ	ENG	0	12
4200			CDN	1	NS	ENG	0	13
4761			AUS	61	SA	ENG	1	140
4786			VRC	86		CHI	0	123
4999			ZZZ			UND	0
5016			RUS		SN	RUS	0	105
5027			ZA	27	GT	AFR	1	29
5091			IND	91	BR	ENG	1	118
5100			USA	1	AR	ENG	0	12
5200			CDN	1	QC	FRE	0	13
5761			AUS	61	WA	ENG	1	140
5786			VRC	86		CHI	0	123
5999			ZZZ			UND	0
6016			RUS		UL	RUS	0	105
6027			ZA	27	FS	AFR	1	29
6091			IND	91	CH	ENG	1	118
6100			USA	1	CA	ENG	0	12
6200			CDN	1	ON	ENG	0	13
6761			AUS	61	TA	ENG	1	140
6786			VRC	86		CHI	0	123
6999			ZZZ			UND	0
7016			RUS		VA	RUS	0	105
7027			ZA	27	KZ	AFR	1	29
7091			IND	91	CG	ENG	1	118
7200			CDN	1	MB	ENG	0	13
7761			AUS	61	NT	ENG	1	140
7786			VRC	86		CHI	0	123
8016			RUS		CL	RUS	0	105
8027			ZA	27	EC	AFR	1	29
8091			IND	91	DN	ENG	1	118
8100			USA	1	CO	ENG	0	12
8200			CDN	1	SK	ENG	0	13
8761			AUS	61	AC	ENG	1	140
8786			VRC	86		CHI	0	123
9027			ZA	27	NW	AFR	1	29
9091			IND	91	DD	ENG	1	118
9100			USA	1	CT	ENG	0	12
9200			CDN	1	AB	ENG	0	13
9761			AUS	61	OT	ENG	1	140
9786			VRC	86		CHI	0	123
10091			IND	91	DL	ENG	1	118
10100			USA	1	DE	ENG	0	12
10200			CDN	1	BC	ENG	0	13
10786			VRC	86		CHI	0	123
11091			IND	91	GA	ENG	1	118
11100			USA	1	DC	ENG	0	12
11200			CDN	1	NU	ENG	0	13
11786			VRC	86		CHI	0	123
12091			IND	91	GJ	ENG	1	118
12100			USA	1	FL	ENG	0	12
12200			CDN	1	NT	ENG	0	13
12786			VRC	86		CHI	0	123
13091			IND	91	HR	ENG	1	118
13100			USA	1	GA	ENG	0	12
13200			CDN	1	YT	ENG	0	13
13786			VRC	86		CHI	0	123
14091			IND	91	HP	ENG	1	118
14786			VRC	86		CHI	0	123
15091			IND	91	JK	ENG	1	118
15100			USA	1	HI	ENG	0	12
15786			VRC	86		CHI	0	123
16091			IND	91	JH	ENG	1	118
16100			USA	1	ID	ENG	0	12
16786			VRC	86		CHI	0	123
17091			IND	91	KA	ENG	1	118
17100			USA	1	IL	ENG	0	12
17786			VRC	86		CHI	0	123
18091			IND	91	KL	ENG	1	118
18100			USA	1	IN	ENG	0	12
18786			VRC	86		CHI	0	123
19091			IND	91	LD	ENG	1	118
19100			USA	1	IA	ENG	0	12
19786			VRC	86		CHI	0	123
20091			IND	91	MP	ENG	1	118
20100			USA	1	KS	ENG	0	12
20786			VRC	86		CHI	0	123
21091			IND	91	MH	ENG	1	118
21100			USA	1	KY	ENG	0	12
21786			VRC	86		CHI	0	123
22091			IND	91	MN	ENG	1	118
22100			USA	1	LA	ENG	0	12
22786			VRC	86		CHI	0	123
23091			IND	91	ML	ENG	1	118
23100			USA	1	ME	ENG	0	12
23786			VRC	86		CHI	0	123
24091			IND	91	MZ	ENG	1	118
24100			USA	1	MD	ENG	0	12
24786			VRC	86		CHI	0	123
25091			IND	91	NL	ENG	1	118
25100			USA	1	MA	ENG	0	12
25786			VRC	86		CHI	0	123
26091			IND	91	OR	ENG	1	118
26100			USA	1	MI	ENG	0	12
26786			VRC	86		CHI	0	123
27091			IND	91	PY	ENG	1	118
27100			USA	1	MN	ENG	0	12
27786			VRC	86		CHI	0	123
28091			IND	91	PB	ENG	1	118
28100			USA	1	MS	ENG	0	12
28786			VRC	86		CHI	0	123
29091			IND	91	RJ	ENG	1	118
29100			USA	1	MO	ENG	0	12
29786			VRC	86		CHI	0	123
30091			IND	91	SK	ENG	1	118
30100			USA	1	MT	ENG	0	12
30786			VRC	86		CHI	0	123
31091			IND	91	TN	ENG	1	118
31100			USA	1	NE	ENG	0	12
31786			VRC	86		CHI	0	123
32091			IND	91	TR	ENG	1	118
32100			USA	1	NV	ENG	0	12
32786			VRC	86		CHI	1	123
33091			IND	91	UP	ENG	1	118
33100			USA	1	NH	ENG	0	12
33786			VRC	86		POR	1	123
34091			IND	91	UA	ENG	1	118
34100			USA	1	NJ	ENG	0	12
35091			IND	91	WB	ENG	1	118
35100			USA	1	NM	ENG	0	12
36091			IND	91	TG	ENG	1	118
36100			USA	1	NY	ENG	0	12
37100			USA	1	NC	ENG	0	12
38100			USA	1	ND	ENG	0	12
39100			USA	1	OH	ENG	0	12
40100			USA	1	OK	ENG	0	12
41100			USA	1	OR	ENG	0	12
42100			USA	1	PA	ENG	0	12
44100			USA	1	RI	ENG	0	12
45100			USA	1	SC	ENG	0	12
46100			USA	1	SD	ENG	0	12
47100			USA	1	TN	ENG	0	12
48100			USA	1	TX	ENG	0	12
49100			USA	1	UT	ENG	0	12
50100			USA	1	VT	ENG	0	12
51100			USA	1	VA	ENG	0	12
53100			USA	1	WA	ENG	0	12
54100			USA	1	WV	ENG	0	12
55100			USA	1	WI	ENG	0	12
56100			USA	1	WY	ENG	0	12
