Posted: **Thu Oct 01, 2020 9:28 am**

Hi there,

in the recent weeks I used some of my self-developed clients which are based on the xServer.NET control.
Some parties saw that I animate the MapPolygon objects and they asked me how to achieve this.

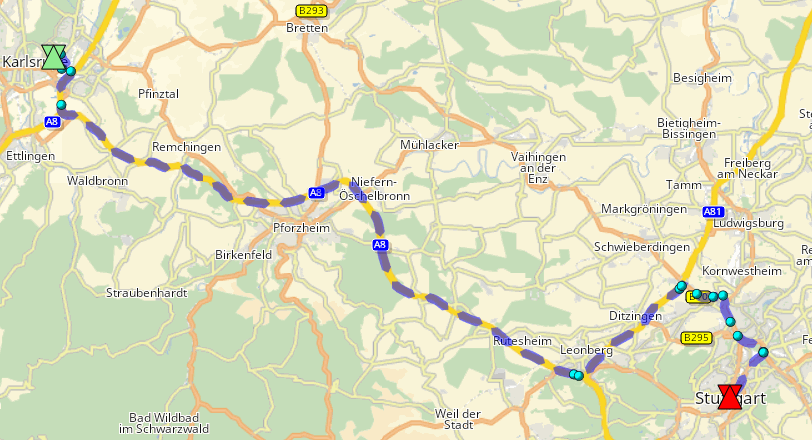

sample - click to see the animation

Well - here's what you'd have to do (I assume that you already know how to display a static polygon and just want to add the animation) :

Include required namespaces System.Windows.Media and System.Windows.Media.Animation
Code: Select all
```
using System.Windows.Media;
using System.Windows.Media.Animation;
```

Define global objects of type System.Windows.Media.Animation.Storyboard and System.Windows.Media.Animation.DoubleAnimation

Code: Select all

DoubleAnimation animation = new DoubleAnimation()
{
     From = 4,
     To = 0,
     Duration = TimeSpan.FromMilliseconds(1500),
     FillBehavior = FillBehavior.HoldEnd,
     RepeatBehavior = RepeatBehavior.Forever
};
Storyboard storyboard = new Storyboard();

Constructor Form(): Add the animation to the storyboard

Code: Select all

storyboard.Children.Add(animation);
Storyboard.SetTargetProperty(animation, new System.Windows.PropertyPath("(Line.StrokeDashOffset)"));

Later in the source when you build the objects: Create the polygon object and set some of the properties which are needed for the animation:

how to create a proper point collection in xServer2

Code: Select all

Polyline polyline = (Polyline)response.polyline.plain;

System.Windows.Point[] arrPoints
= polyline.polyline.Select(p => new System.Windows.Point(p.x, p.y)).ToArray();

PointCollection pc = new System.Windows.Media.PointCollection(arrPoints);

how to create a proper point collection in Developer (using Newtonsoft and Net Topology Suite)

Code: Select all

JsonSerializer serializer = GeoJsonSerializer.Create();
JsonTextReader jsonReader = new JsonTextReader(new StringReader(routeResponse.Polyline));

NetTopologySuite.Geometries.Geometry geometry
 = serializer.Deserialize<NetTopologySuite.Geometries.Geometry>(jsonReader);

System.Windows.Point[] arrPoints
 = geometry.Coordinates.Select(p => new System.Windows.Point(p.X, p.Y)).ToArray();

PointCollection pc = new PointCollection(arrPoints);

and use the point collection

Code: Select all

// now use the point collection
MapPolyline mp = new MapPolyline()
{
  Points = pc,
  MapStrokeThickness = LINEWIDTH,
  Stroke = System.Windows.Media.Brushes.Blue,
  Opacity = 0.5,
  ScaleFactor = 0.1,
  StrokeLineJoin = PenLineJoin.Round,
  StrokeStartLineCap = PenLineCap.Round,
  StrokeEndLineCap = PenLineCap.Round,
  StrokeDashCap = PenLineCap.Triangle,
  StrokeDashArray = new DoubleCollection { 2, 2 },
  IsHitTestVisible = false,
  ToolTip = "Route"
};

Connect the polygon object to the storyboard's animation and start the animation:
Code: Select all
```
Storyboard.SetTarget(animation, mp);
storyboard.Begin();
```

Of course you can find further fancy samples on Oliver's github...

Best regards,
Bernd
