Creation of input files for non PTV navigation?
Posted: Mon Aug 03, 2020 3:51 pm
Hi there,
as many of you probably know PTV offers both
- backend routing components (PTV xRoute)
- offline navigation (PTV Navigator)
and we also provide a mechanism called Guided Navigation which is based on a proprietary file format which is also supported by the xRoute engine (v2.x) itself.
Every once in a while I am getting asked for whether PTV routing can provide files that are ready to be used with non-PTV navigation products such as Google Maps (©) or Cygic(©). Of course each one of those players requires a proprietary file format so what PTV xRoute can offer is to return the info that is needed to create such a file, e.g. all the polygon points.
What we do not support at the moment (august 2020) is s a direct output you can forward to those other systems. You would need to assemble these strings manually but afaik the level of complexity is way less than rocket science
In most cases you simply need WGS84 coordinates of the waypoints (stations) or maybe all the detailed polygon points. We can provide both of course.
Best regards,
Bernd
PS: here's a sample BCR file which demonstrates the structure of PTVs own "guided navigation" mechanism. This complete string is guiding the driver from Karlsruhe to Mannheim and is bassed on PTV_MERCATOR coordinates. Of course we also support formats such as WGS84 (Open Gis Geodecimal).
as many of you probably know PTV offers both
- backend routing components (PTV xRoute)
- offline navigation (PTV Navigator)
and we also provide a mechanism called Guided Navigation which is based on a proprietary file format which is also supported by the xRoute engine (v2.x) itself.
Every once in a while I am getting asked for whether PTV routing can provide files that are ready to be used with non-PTV navigation products such as Google Maps (©) or Cygic(©). Of course each one of those players requires a proprietary file format so what PTV xRoute can offer is to return the info that is needed to create such a file, e.g. all the polygon points.
What we do not support at the moment (august 2020) is s a direct output you can forward to those other systems. You would need to assemble these strings manually but afaik the level of complexity is way less than rocket science

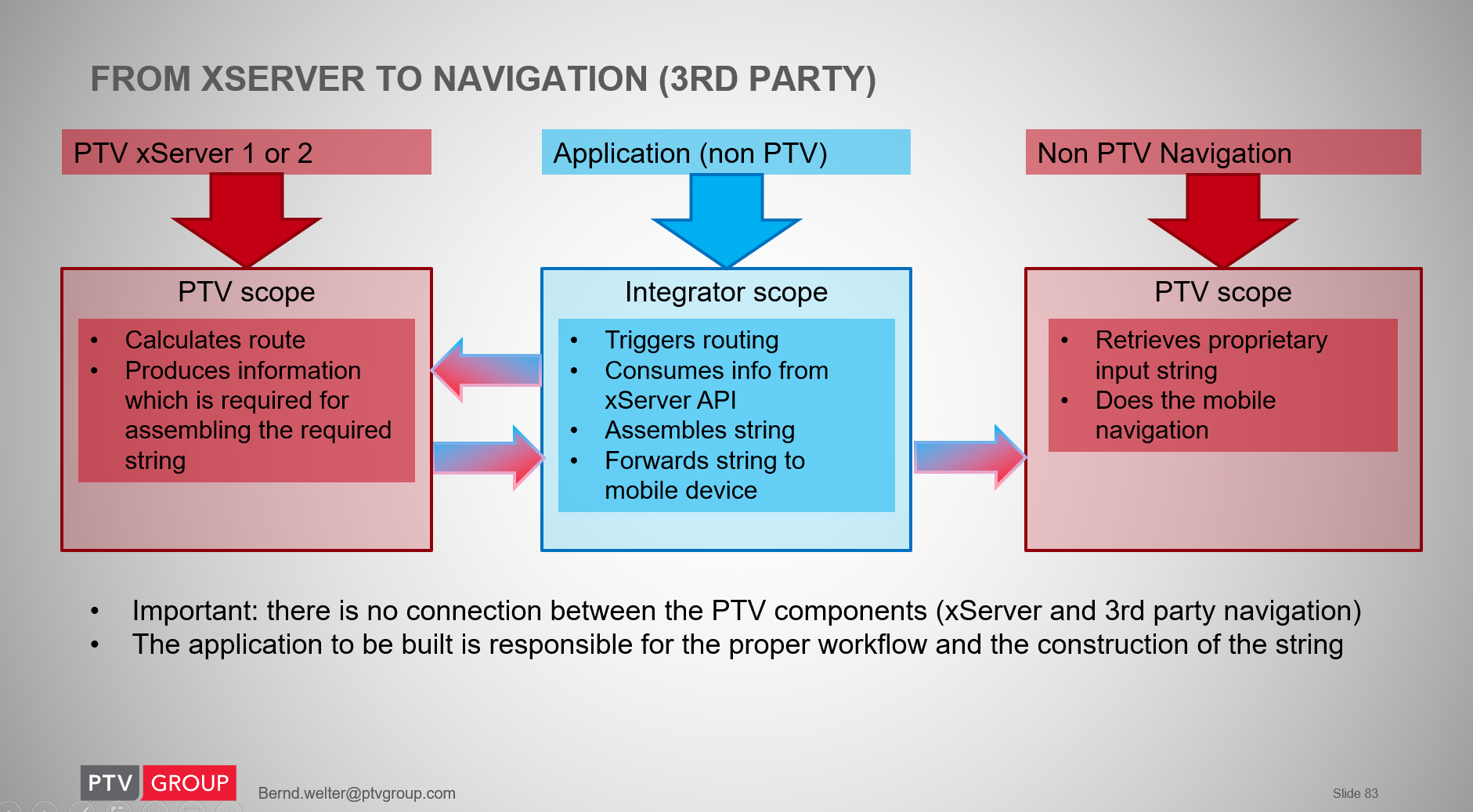

- simple workflow chart
Best regards,
Bernd
PS: here's a sample BCR file which demonstrates the structure of PTVs own "guided navigation" mechanism. This complete string is guiding the driver from Karlsruhe to Mannheim and is bassed on PTV_MERCATOR coordinates. Of course we also support formats such as WGS84 (Open Gis Geodecimal).
[CLIENT]
ROUTENAME=xServer 2 - guided navigation route export
MAP_VERSION=unknown
[COORDINATES]
STATION1=937170,6270123
STATION2=941462,6350704
[VISITED]
STATION1=0
STATION2=0
[Station2Segmentcenters]
Point1=937410,6270183,72
Point2=937513,6269952,164
Point3=937699,6268849,107
Point4=940219,6268889,45
Point5=944406,6276077,27
Point6=949109,6284042,27
Point7=951235,6291451,22
Point8=954888,6300524,24
Point9=956410,6309145,355
Point10=957865,6316105,307
Point11=953031,6322201,320
Point12=952211,6323471,333
Point13=950117,6331361,355
Point14=950184,6339869,340
Point15=948806,6346746,297
Point16=947195,6347465,212
Point17=947053,6347210,203
Point18=946327,6346535,300
Point19=943537,6348160,315
Point20=943093,6348610,90
