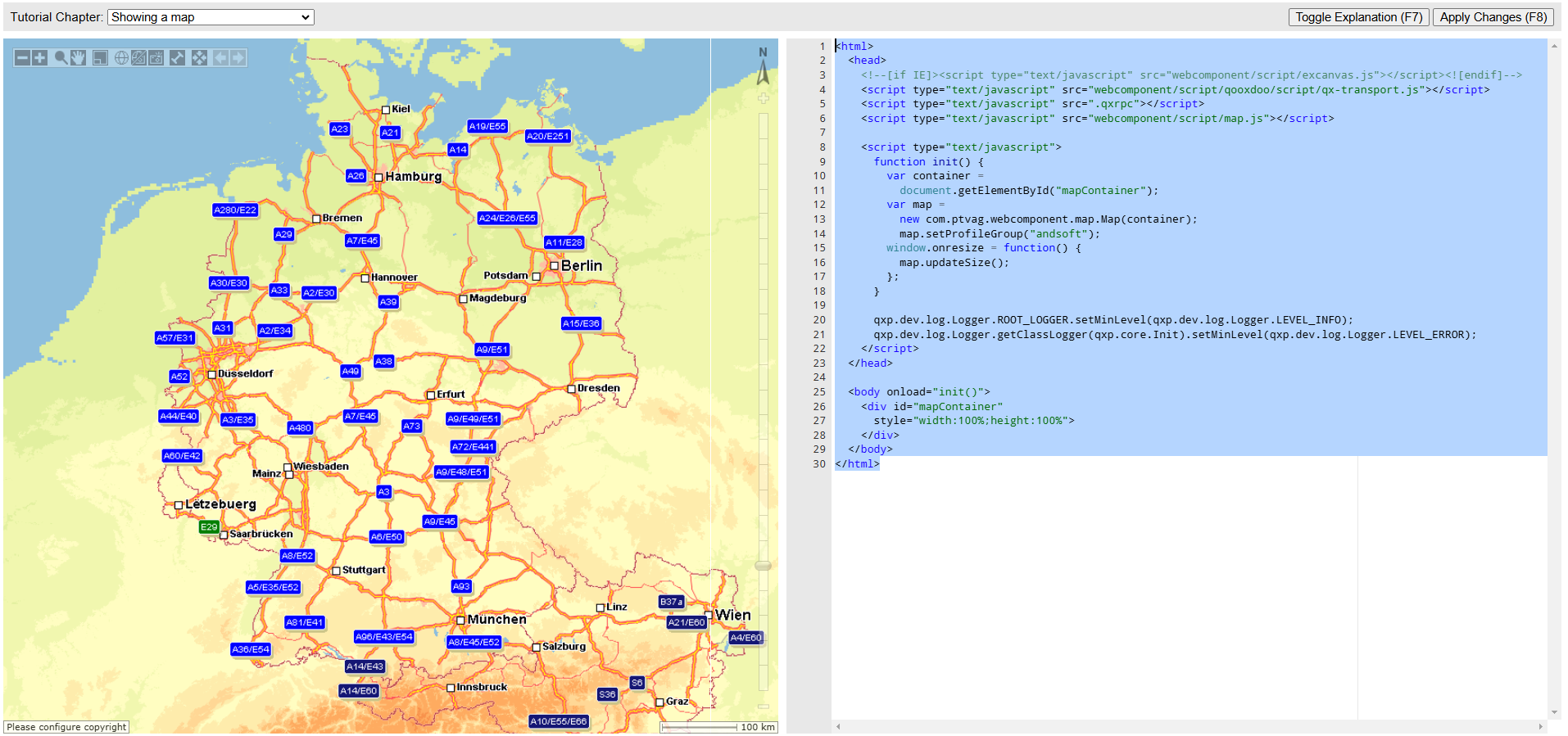

this week a partner asked me weether it is possible to apply a custom profile in AJAX maps (xMap 1). He wanted to display EMISSION ZONES on a map. Well, here's the result and below you can find the instructions:
- sample - ready to be executeed in the AJAX tutorial
- a proper native rendering profile
- a set of ajax profiles ("bg", "fg", "ov"):
- propagate the profiles in the ajaxmaps.properties as a new "group" - they define a so-called ProfileGroup:
xmap.profile.foreground.greenzones = greenzones-fg
xmap.profile.background.greenzones = greenzones-bg
xmap.profile.overview.greenzones = greenzones-ov - Request the profile group in the ajax maps call:
Code: Select all
<html> <head> <!--[if IE]><script type="text/javascript" src="webcomponent/script/excanvas.js"></script><![endif]--> <script type="text/javascript" src="webcomponent/script/qooxdoo/script/qx-transport.js"></script> <script type="text/javascript" src=".qxrpc"></script> <script type="text/javascript" src="webcomponent/script/map.js"></script> <script type="text/javascript"> function init() { var container = document.getElementById("mapContainer"); var map = new com.ptvag.webcomponent.map.Map(container); map.setProfileGroup("greenzones"); window.onresize = function() { map.updateSize(); }; } qxp.dev.log.Logger.ROOT_LOGGER.setMinLevel(qxp.dev.log.Logger.LEVEL_INFO); qxp.dev.log.Logger.getClassLogger(qxp.core.Init).setMinLevel(qxp.dev.log.Logger.LEVEL_ERROR); </script> </head> <body onload="init()"> <div id="mapContainer" style="width:100%;height:100%"> </div> </body> </html>
Bernd
