Toll calculation with tunnel restrictions

[Uta Jäger-Frenk]

I received a question here which might be interesting:

I would like to get more information how it's possible to adjust the routing + toll with restrictions to ADR. We have added a tunnelrestriction code to the parameters of the calculation but this does not seem to have any impact on the calculations we did. I have tested this on routes where there are multiple tunnels but the distance or toll did not have any impact.

I have tested this on multiple calculations for Antwerp Kennedy R1 code D. But this did not have any impact. Could you advice how we can make certain calculations that take into account the ADR type?

Here the xServer 2 test cloud is used.

[Bernd Welter]

Hi Uta,

from a theoretical perspective my feedback about that story is:

• In xServer2 a vehicle's tunnel restriction code is available through the com.ptvgroup.xserver.vehicleprofile.TunnelRestrictionCode
• You also have to activate the FeatureLayer PTV_TruckAttributes to ensure that the code is matching a segment restriction.

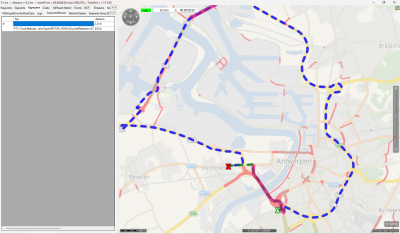

green route: Vehicle with TunnelCode=E
blue route: vehicle with TunnelCode=D
southern pink segments: 4km tunnel segments with codeD

Does this answer the question?

Bernd

PS: it 's probably easier to respond if the specific request / response of the customer is given. Here's an example... 40T truck...

Code: Select all

{
  "storedProfile" : "truck40t",
  "requestProfile":{
    "vehicleProfile":{
      "load":{
        "tunnelRestrictionCode":"D"
      }
    },
    "featureLayerProfile":{
      "themes":[
        {
          "id":"PTV_TruckAttributes",
          "enabled":true
        }
      ]
    }
  },
  "waypoints": [
    {
      "$type": "OffRoadWaypoint",
      "location": {
        "offRoadCoordinate": {
          "x": 4.382934,
          "y": 51.194391
        }
      }
    },
    {
      "$type": "OffRoadWaypoint",
      "location": {
        "offRoadCoordinate": {
          "x": 4.338277,
          "y": 51.219122
        }
      }
    }
  ],
  "resultFields": {
    "polyline": true
  }
}
