Workflow Visualization of xLoad output / 3D Frameworks

[Bernd Welter]

Cheers,

if you are active in this subforum you hopefully know the xLoad showcase.

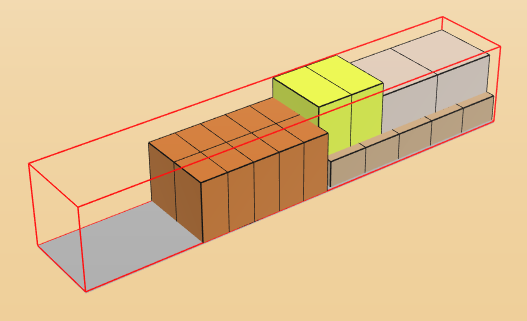

screenshot taken from our showcase

The regular process is based on

• determine the bins that are supposed to be optimized on your truck (manually or with a component such as xTour)
• call xLoad to determine the optimal loading structure and sequence
• rendering the output with a framework of your choice

Every once in a while I have to explain to players that the fancy 3D visualization of the result is not part of PTV itself but is produced by a JavaScript based third party framework. In the showcase we use THREE.JS (available here) but of course there might be other frameworks which satisfy your environmental requirements in an even better way (THREE looks great and we probably use just a small featureset).

Let us know whether you have experience with specific 3D frameworks and I'd add them here in this post.

Best regards,
Bernd
