How to visualize TruckAttributes for debugging purposes?

Bernd Welter · Post by **Bernd Welter** » Tue Jan 27, 2015 4:54 pm

Hello together,

from time to time I'm getting asked about the number of TruckAttributes we provide with our data.
I'm using a dedicated mapping profile that visualizes the existing attributes on a level that is not meaningful for production but that is very helpful for debugging.
Maybe this profile can help you as well.

Just extract the archive into the /conf of xMap and request the profile via CallerContext:

Code: Select all

<CallerContext_6>
 <wrappedProperties xmlns="http://baseservices.service.jabba.ptvag.com">
   <CallerContextProperty key="Profile" value="tarender" />
   <CallerContextProperty />
 </wrappedProperties>
</CallerContext_6>

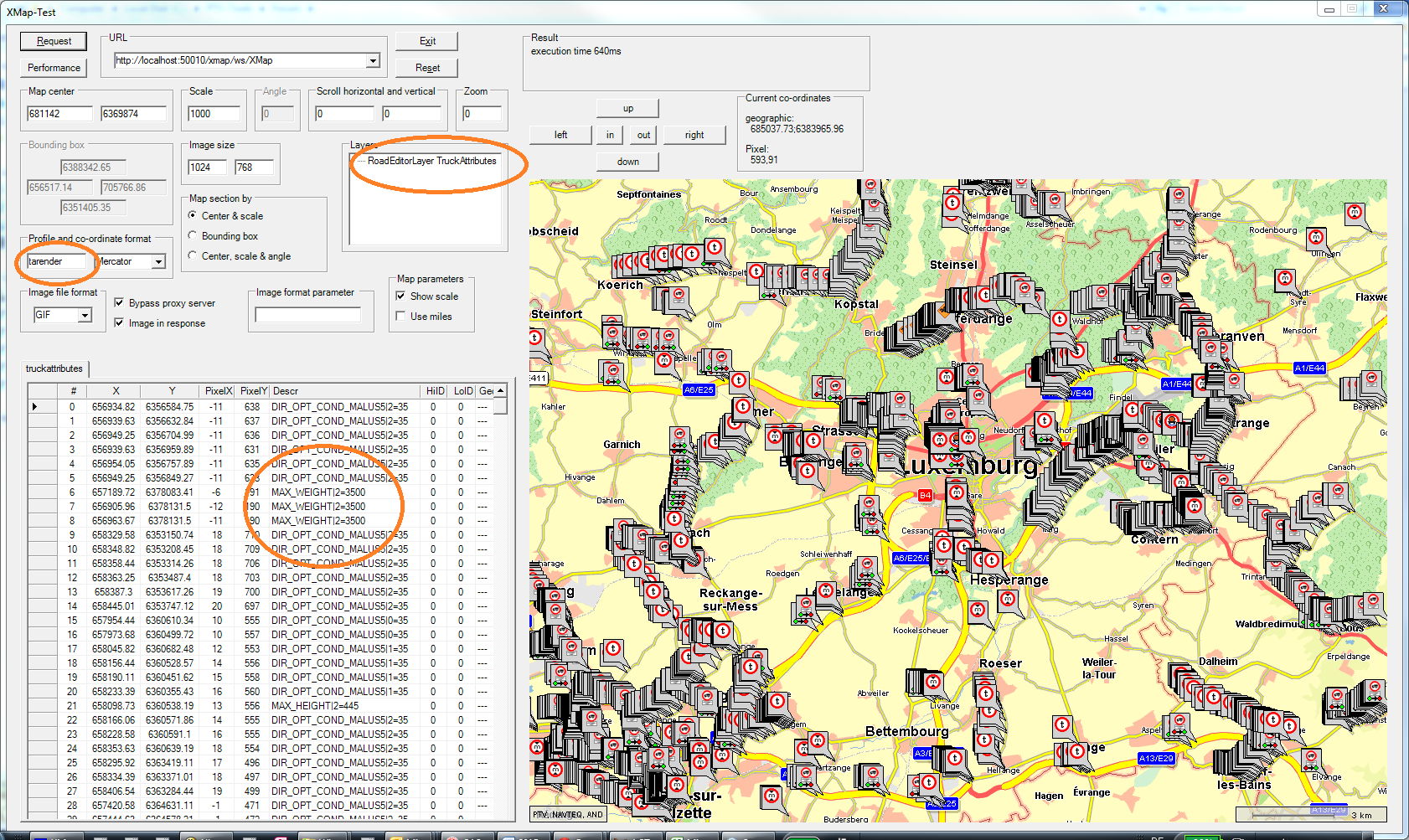

The result looks like this:

: Output of request via xMap-Test tool

Best regards Bernd
PS: the trick is the MaximumScale= value that is available for a large number of attributes. You may assign it to even higher values if necessary (with impact on performance but that's ok for debugging)

tarender.zip: the TARENDER profile and it's xMap-profile; (2.53 KiB) Downloaded 514 times
