Standard profiles

[Bernd Welter]

Hello together,

today a customer asked me how to enable the visualization of buildings in xMap. I just would like to draw your attention to the mechanism of "legacy profiles" in xMap. On a running xServer it is documented in

http://127.0.0.1:50010/manual/Default.h ... s%7C_____0

By switching the request profile to a referenced INI file you can create images such as the following ones:

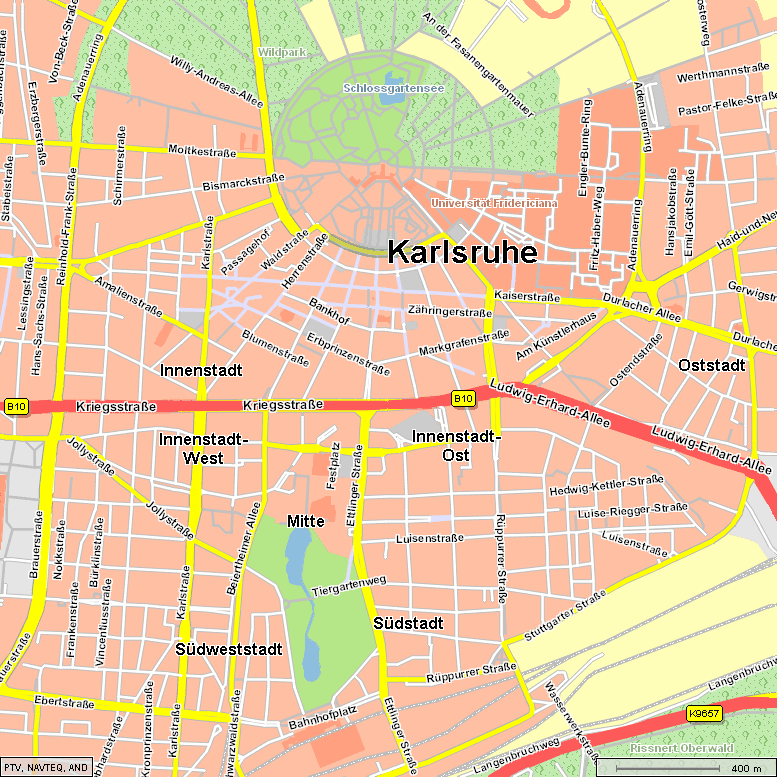

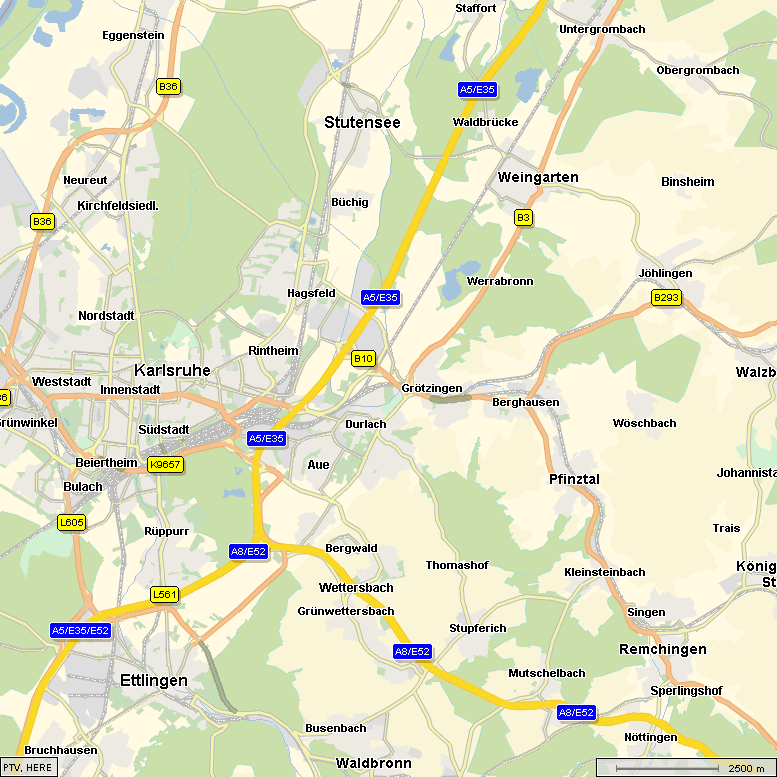

SILKYSAND profile

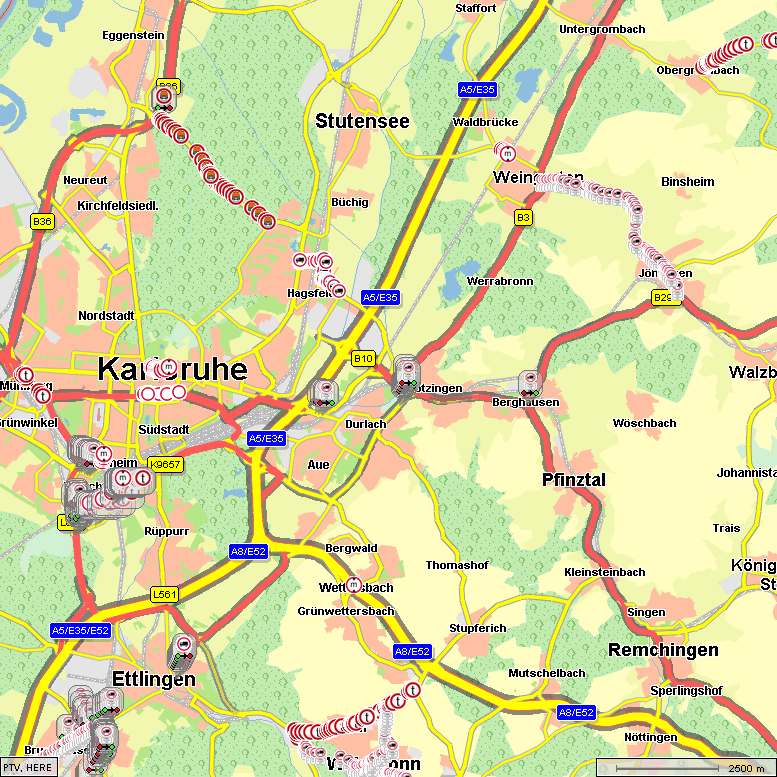

TARENDER (not standard)

GREENZONES profile

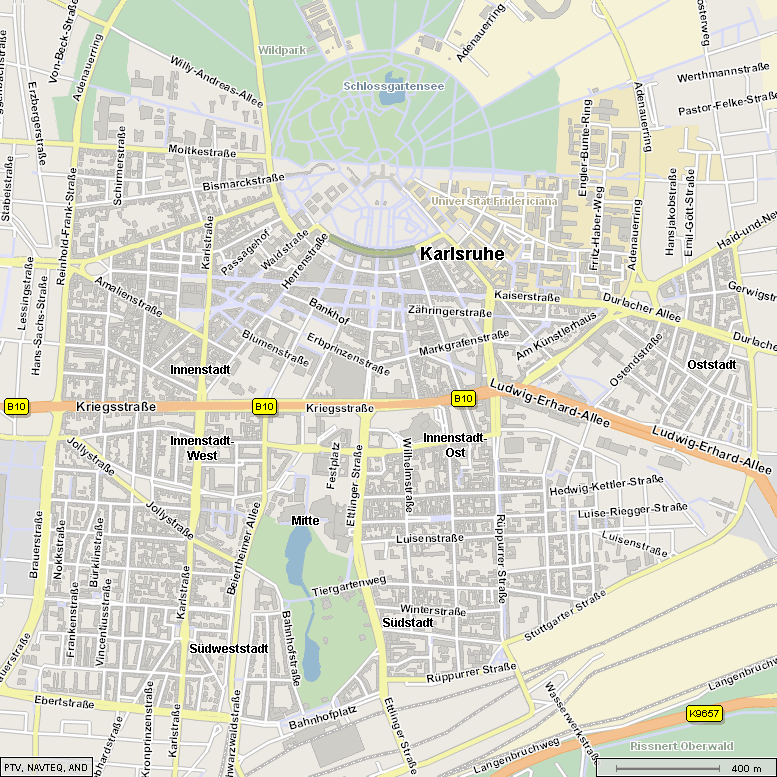

FOOTPRINTS profile

SANDBOX profile

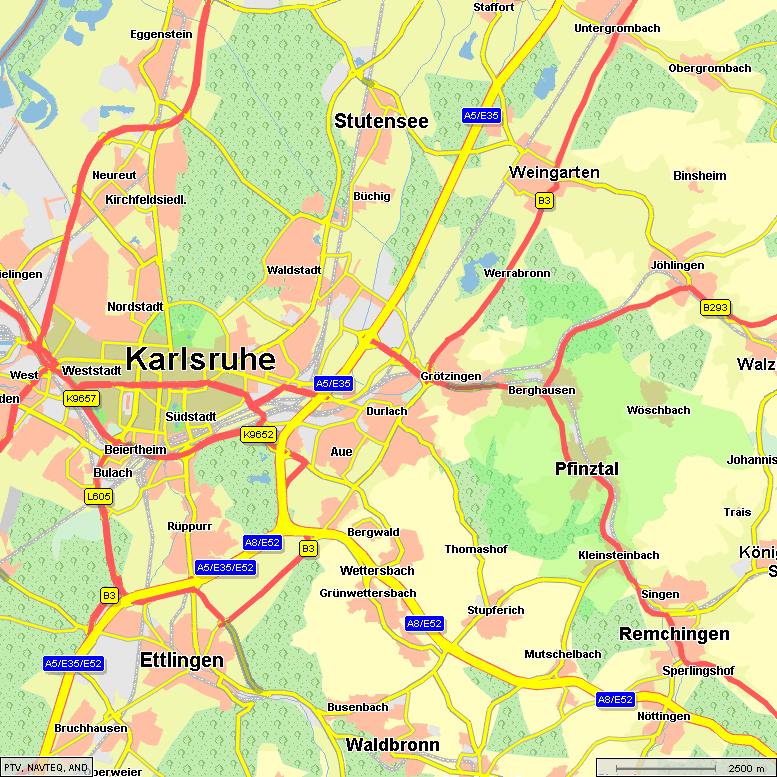

DEFAULT profile

UPPERCLASSES (not standard)

The required part of the XML code of a native request is

Code: Select all

<CallerContext_6>
        <wrappedProperties xmlns="http://baseservices.service.jabba.ptvag.com">
          <CallerContextProperty key="CoordFormat" value="PTV_MERCATOR" />
          <CallerContextProperty key="Profile" value="sandbox" />
          <CallerContextProperty />
        </wrappedProperties>
      </CallerContext_6>

It is also an option to change

• color schemes
• line widths
• text layouts

by editing the INI files. And there are many more gimmicks available in the native interface - let us know what you require

If you want to create your own tile-based approach you may have to check the mash-up of foreground- and background layer as we do this in AJAX maps.

Best regards from Germany,

Bernd

PS: and here are the XML sources - you can use xMap test client to replay these XMLs
